Cadenza CL-C18 & 5CL-C18

제품설명
제품명&규격

실라놀 양을 조절한
C18 컬럼

Cadenza Series 컬럼은 입체 선택성을 위해 최적화된 리간드 밀도를 가진 고품질의 ODS 컬럼입니다. 이 컬럼은 분석 물질의 미세한 차이를 구별할 수 있어 이성질체 분리 및 Impurity 분리에 탁월합니다.
컬럼 제조에 고품질 재료를 사용하기 때문에 압력은 낮고, 독자적인 Polymeric End-capping 기술 채택으로 불필요한 2차 상호작용을 차단하여 우수한 모양의 피크를 제공합니다.

Cadenza CL-C18

Column Type Reverse Phase
Reverse Phase
Particle Size 3
5
Pore Size 12
12
Length 10-500mm
30-250mm
Internal Diameter 1.0-10mm
1.0-28mm

특징

특별한 리간드 밀도로 탁월한 입체 선택성 제공
세계 최초의 실라놀 양을 조절한 ODS컬럼으로 이온 화합물에 대해 추가적인 선택성 제공
낮은 압력의 고효율 3µm, 5µm ODS 컬럼
최대 1000bar(=100MPa)의 압력에서 사용할 수 있는 HT(50MPa) 및 UP(100MPa) 컬럼 제작

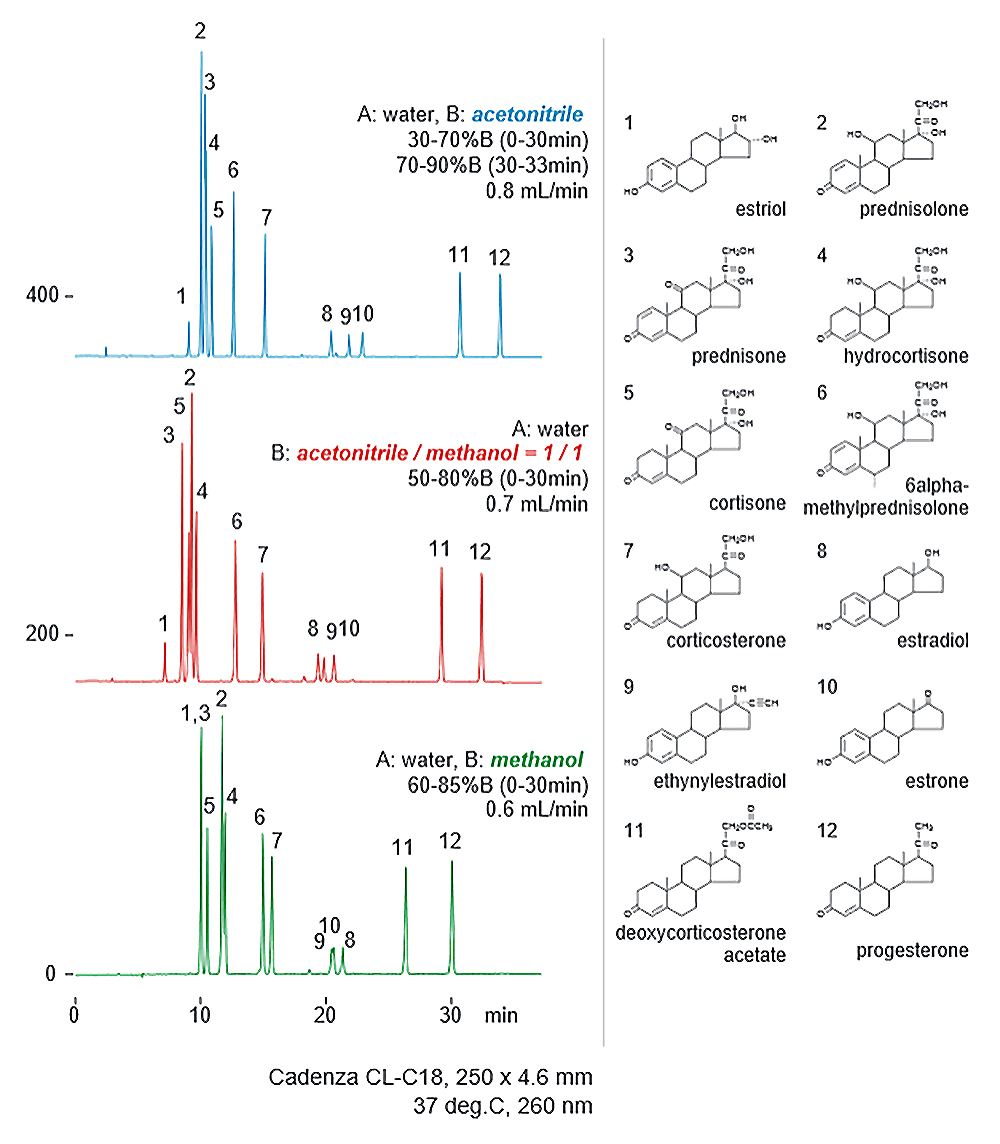

스테로이드 호르몬 <Cadenza CL-C18,
250 × I.D 4.6mm>

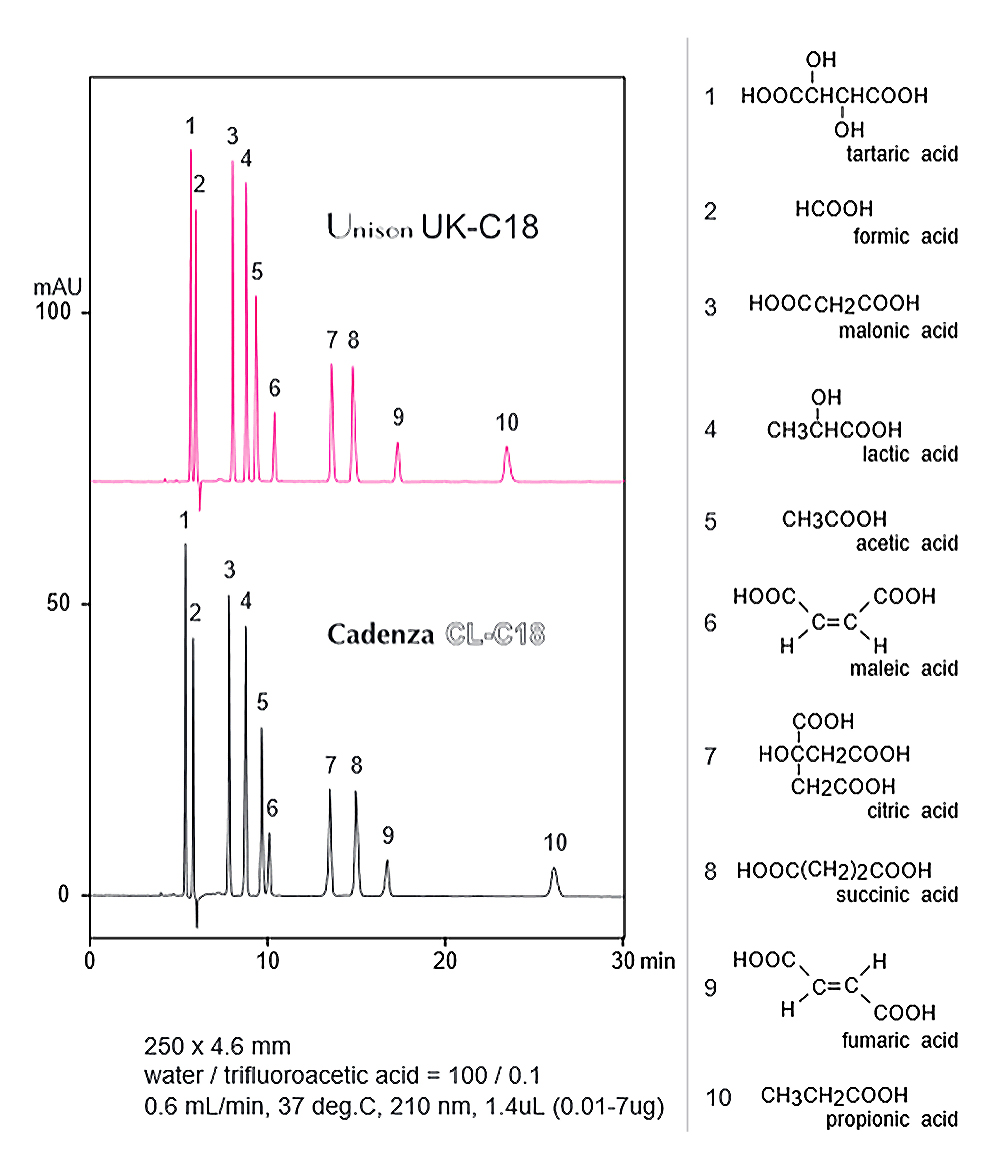

유기산 <Unison UK-C18>,
<Cadenza CL-C18, 250 × I.D 4.6mm>

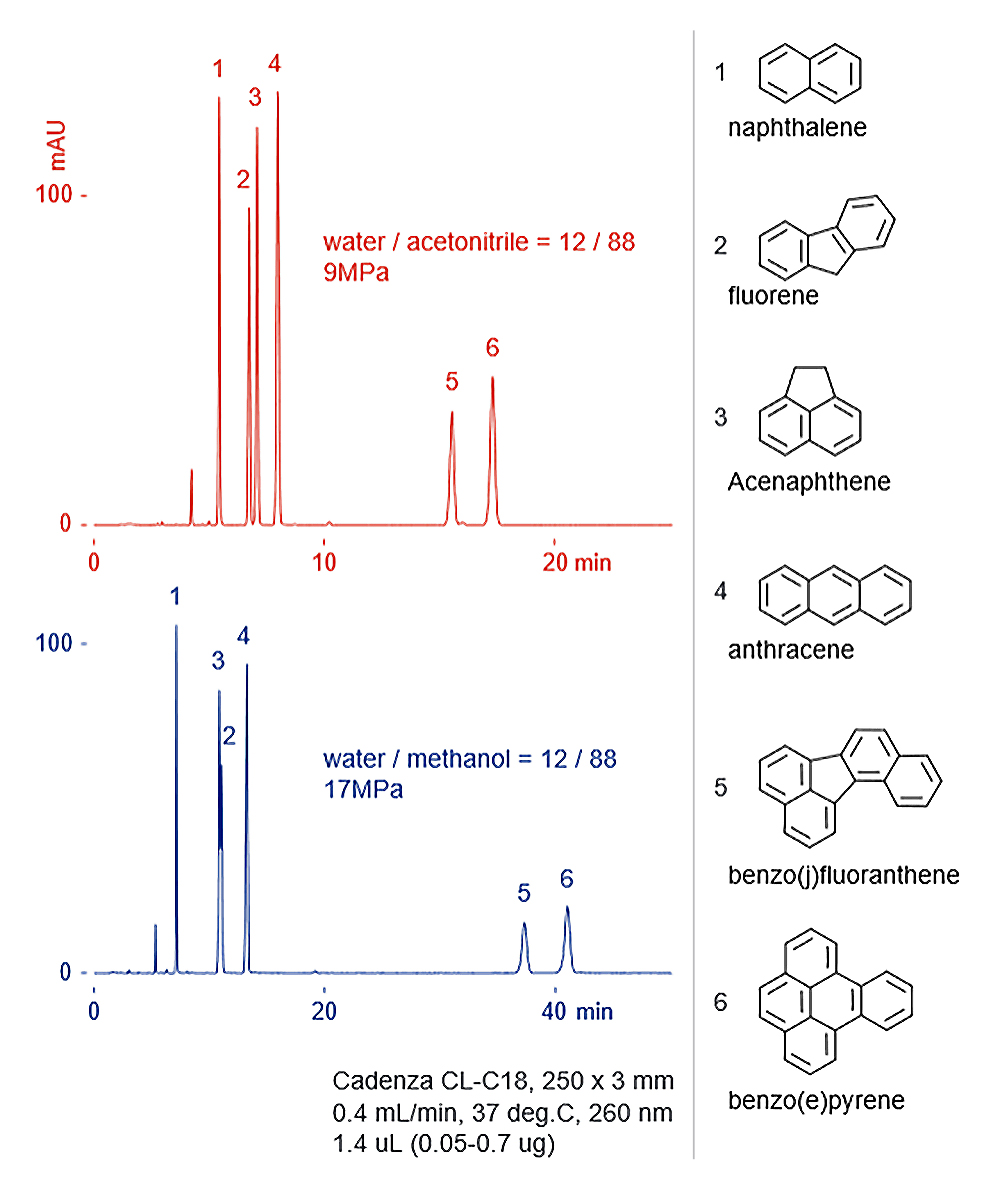

다환 방향족 탄환 수소(PAHs) <Cadenza CL-C18,
250 × I.D 3.0mm>

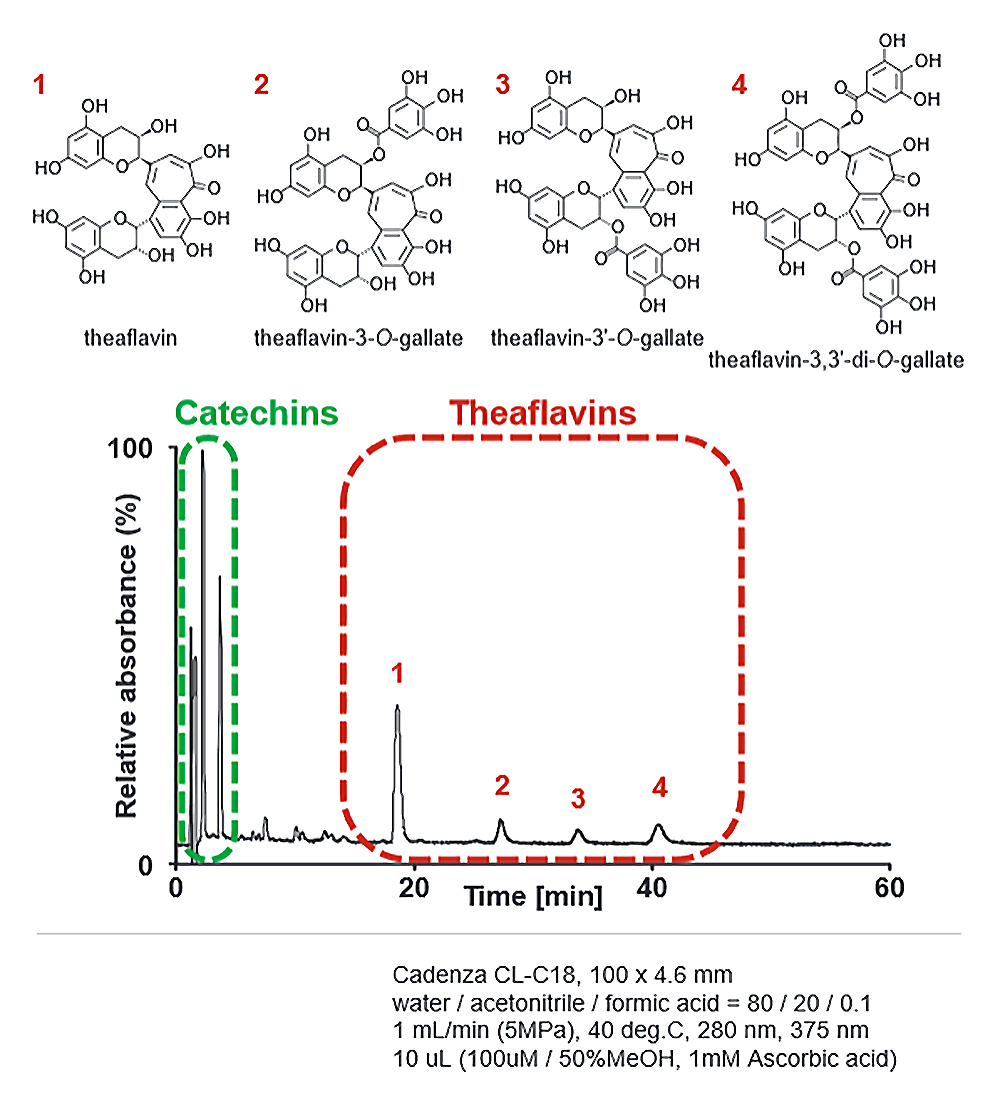

Theaflavins <Cadenza CL-C18,
100 × I.D 4.6mm>

제품설명
제품명&규격

Cadenza CL-C18 & 5CL-C18

제품리스트

CL-C18 (3μm)

CL011
CL-C18
3
1.0
30

CL012
CL-C18
3
1.0
50

CL013
CL-C18
3
1.0
75

CL014
CL-C18
3
1.0
100

CL015
CL-C18
3
1.0
150

CL016
CL-C18
3
1.0
250

CL071
CL-C18
3
1.5
30

CL072
CL-C18
3
1.5
50

CL073
CL-C18
3
1.5
75

CL074
CL-C18
3
1.5
100

CL075
CL-C18
3
1.5
150

CL076
CL-C18
3
1.5
250

CL020
CL-C18
3
2.0
10

CL029
CL-C18
3
2.0
20

CL021
CL-C18
3
2.0
30

CL022
CL-C18
3
2.0
50

CL023
CL-C18
3
2.0
75

CL024
CL-C18
3
2.0
100

CL025
CL-C18
3
2.0
150

CL026
CL-C18
3
2.0
250

CL030
CL-C18
3
3.0
10

CL039
CL-C18
3
3.0
20

CL031
CL-C18
3
3.0
30

CL032
CL-C18
3
3.0
50

CL033
CL-C18
3
3.0
75

CL034
CL-C18
3
3.0
100

CL035
CL-C18
3
3.0
150

CL036
CL-C18
3
3.0
250

CL000
CL-C18
3
4.6
10

CL009
CL-C18
3
4.6
20

CL001
CL-C18
3
4.6
30

CL002
CL-C18
3
4.6
50

CL003
CL-C18
3
4.6
75

CL004
CL-C18
3
4.6
100

CL005
CL-C18
3
4.6
150

CL006
CL-C18
3
4.6
250

CL007
CL-C18
3
4.6
500

CL061
CL-C18
3
6.0
30

CL062
CL-C18
3
6.0
50

CL063
CL-C18
3
6.0
75

CL064
CL-C18
3
6.0
100

CL065
CL-C18
3
6.0
150

CL066
CL-C18
3
6.0
250

CL0P1
CL-C18
3
10
30

CL0P2
CL-C18
3
10
50

CL0P3
CL-C18
3
10
75

CL0P4
CL-C18
3
10
100

CL0P5
CL-C18
3
10
150

CL0P6
CL-C18
3
10
250

CL-C18 HT(50MPa) (3μm)

CL011T
CL-C18 HT
3
1.0
30

CL012T
CL-C18 HT
3
1.0
50

CL013T
CL-C18 HT
3
1.0
75

CL014T
CL-C18 HT
3
1.0
100

CL015T
CL-C18 HT
3
1.0
150

CL016T
CL-C18 HT
3
1.0
250

CL071T
CL-C18 HT
3
1.5
30

CL072T
CL-C18 HT
3
1.5
50

CL073T
CL-C18 HT
3
1.5
75

CL074T
CL-C18 HT
3
1.5
100

CL075T
CL-C18 HT
3
1.5
150

CL076T
CL-C18 HT
3
1.5
250

CL020T
CL-C18 HT
3
2.0
10

CL029T
CL-C18 HT
3
2.0
20

CL021T
CL-C18 HT
3
2.0
30

CL022T
CL-C18 HT
3
2.0
50

CL023T
CL-C18 HT
3
2.0
75

CL024T
CL-C18 HT
3
2.0
100

CL025T
CL-C18 HT
3
2.0
150

CL026T
CL-C18 HT
3
2.0
250

CL030T
CL-C18 HT
3
3.0
10

CL039T
CL-C18 HT
3
3.0
20

CL031T
CL-C18 HT
3
3.0
30

CL032T
CL-C18 HT
3
3.0
50

CL033T
CL-C18 HT
3
3.0
75

CL034T
CL-C18 HT
3
3.0
100

CL035T
CL-C18 HT
3
3.0
150

CL036T
CL-C18 HT
3
3.0
250

CL000T
CL-C18 HT
3
4.6
10

CL009T
CL-C18 HT
3
4.6
20

CL001T
CL-C18 HT
3
4.6
30

CL002T
CL-C18 HT
3
4.6
50

CL003T
CL-C18 HT
3
4.6
75

CL004T
CL-C18 HT
3
4.6
100

CL005T
CL-C18 HT
3
4.6
150

CL006T
CL-C18 HT
3
4.6
250

CL-C18 UP(100MPa) (3μm)

CL021U
CL-C18 UP
3
2.0
30

CL022U
CL-C18 UP
3
2.0
50

CL023U
CL-C18 UP
3
2.0
75

CL024U
CL-C18 UP
3
2.0
100

CL025U
CL-C18 UP
3
2.0
150

CL026U
CL-C18 UP
3
2.0
250

CL-C18 MF(50MPa) (3μm)

CL021F
CL-C18 MF
3
2.0
30

CL022F
CL-C18 MF
3
2.0
50

CL023F
CL-C18 MF
3
2.0
75

CL024F
CL-C18 MF
3
2.0
100

CL025F
CL-C18 MF
3
2.0
150

CL026F
CL-C18 MF
3
2.0
250

5CL-C18 (5μm)

5CL011
5CL-C18
5
1.0
30

5CL012
5CL-C18
5
1.0
50

5CL013
5CL-C18
5
1.0
75

5CL014
5CL-C18
5
1.0
100

5CL015
5CL-C18
5
1.0
150

5CL016
5CL-C18
5
1.0
250

5CL071
5CL-C18
5
1.5
30

5CL072
5CL-C18
5
1.5
50

5CL073
5CL-C18
5
1.5
75

5CL074
5CL-C18
5
1.5
100

5CL075
5CL-C18
5
1.5
150

5CL076
5CL-C18
5
1.5
250

5CL021
5CL-C18
5
2.0
30

5CL022
5CL-C18
5
2.0
50

5CL023
5CL-C18
5
2.0
75

5CL024
5CL-C18
5
2.0
100

5CL025
5CL-C18
5
2.0
150

5CL026
5CL-C18
5
2.0
250

5CL031
5CL-C18
5
3.0
30

5CL032
5CL-C18
5
3.0
50

5CL033
5CL-C18
5
3.0
75

5CL034
5CL-C18
5
3.0
100

5CL035
5CL-C18
5
3.0
150

5CL036
5CL-C18
5
3.0
250

5CL045
5CL-C18
5
4.0
150

5CL046
5CL-C18
5
4.0
250

5CL001
5CL-C18
5
4.6
30

5CL002
5CL-C18
5
4.6
50

5CL003
5CL-C18
5
4.6
75

5CL004
5CL-C18
5
4.6
100

5CL005
5CL-C18
5
4.6
150

5CL006
5CL-C18
5
4.6
250

5CL061
5CL-C18
5
6.0
30

5CL062
5CL-C18
5
6.0
50

5CL063
5CL-C18
5
6.0
75

5CL064
5CL-C18
5
6.0
100

5CL065
5CL-C18
5
6.0
150

5CL066
5CL-C18
5
6.0
250

5CL0P1
5CL-C18
5
10
30

5CL0P2
5CL-C18
5
10
50

5CL0P3
5CL-C18
5
10
75

5CL0P4
5CL-C18
5
10
100

5CL0P5
5CL-C18
5
10
150

5CL0P6
5CL-C18
5
10
250

5CL0Q2
5CL-C18
5
20
50

5CL0Q4
5CL-C18
5
20
100

5CL0Q5
5CL-C18
5
20
150

5CL0Q6
5CL-C18
5
20
250

5CL0R6
5CL-C18
5
28
250

GUARD CARTRIDGE COLUMN

GCH01S
Guard Holder
-
1.0-6.0
-

GCH02M
Guard Holder
-
10-20
-

GCCL0C
Guard Cartridge CL-C18
3
1.0-1.5
3개입

GCCL0S
Guard Cartridge CL-C18
3
2.0-6.0
3개입

GCCL0M
Guard Cartridge CL-C18
3
10
2개입

G5CL0C
Guard Cartridge 5CL-C18
5
1.0-1.5
3개입

G5CL0S
Guard Cartridge 5CL-C18
5
2.0-6.0
3개입

G5CL0M
Guard Cartridge 5CL-C18
5
10-20
2개입
